Shower Divider Privacy Assembly for Freestanding Column Showers and Group Shower Rooms
Public facilities must now balance creative resilient, safe and sanitary environments that are also code compliant. Proper shower room planning must account for a multitude of issues from proper ventilation, safe distancing, security, vandalism, traffic flow, ADA compliance and ease of maintenance. Choosing the right materials to ensure safe and secure shower room environments along with proper maintenance and cleaning can ensure the long-term health and compliance for all users.
Shower Rooms equipped with Freestanding Column Showers featuring 2 to 6 shower heads can be updated with Column Shower Privacy Assembly by adding stainless steel dividing panels with overhead assembly for individual space and division.
The Stainless-steel privacy panels are secured to shower column and posts with stainless steel stirrup brackets and security screws. Overhead assembly and posts are fabricated in stainless steel tubing and is 80 inches in diameter. Posts are secured to floor with surface mount anchors with adjustable levelling. Assembly includes steel wire curtain hooks, and shower curtains are fabricated in a heavy gauge translucent vinyl with hemmed edges and aluminum grommet reinforced eyelets. Post shoes are anodized aluminum and finished to match stainless steel.
Shower Rooms where multiple shower heads are continuously grouped along structural walls can be sectioned with privacy panels to provide for compartment styled division. Choose from the 3 material options. Overhead bracing is fitted with curtain hooks and shower curtains constructed in heavy gauge translucent vinyl with hemmed edges and aluminum grommet reinforced eyelets.
1) Stainless steel shower panels and pilasters 1” thick are equipped with waterproof core and offered in two finish choices, Satin or Textured. Stainless steel hardware, continuous wall brackets and security fasteners are included. Stainless steel hardware and security fasteners are included.

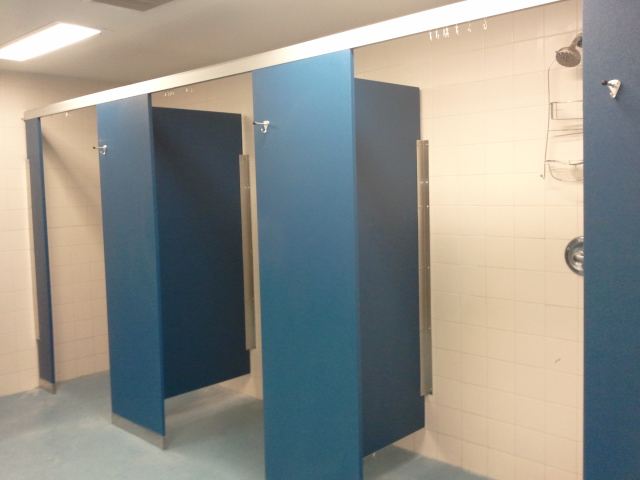

2) Solid plastic shower partitions panels and pilasters are composed from 1″ thick High-Density Polyethylene (HDPE) resins pressed under high pressure to form a single component. This material is waterproof, non-absorbent surface which resists marks from graffiti. Stainless steel hardware and security fasteners are included.

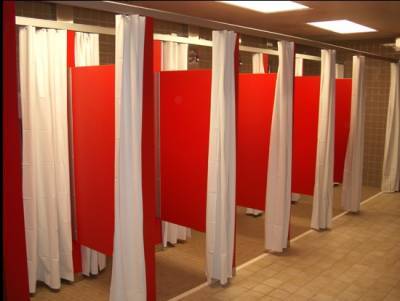

3) Solid Phenolic shower panels are ½” thick and pilasters are ¾” thick compressed cellulose fibers impregnated with resins. The surface laminate is fused to the resin-impregnated core. All edges are machined and finished smooth with a 15-degree beveled edge. Materials are non-absorbent, impact, graffiti, resistant and will not mildew. Stainless steel hardware and security fasteners are included in all layouts.
These materials fit the requirements for the Federal Acquisition Regulation (FAR) provisions – Buy American Act – and manufactured in the United States. Free quotes, engineering drawings and written specs upon request.
